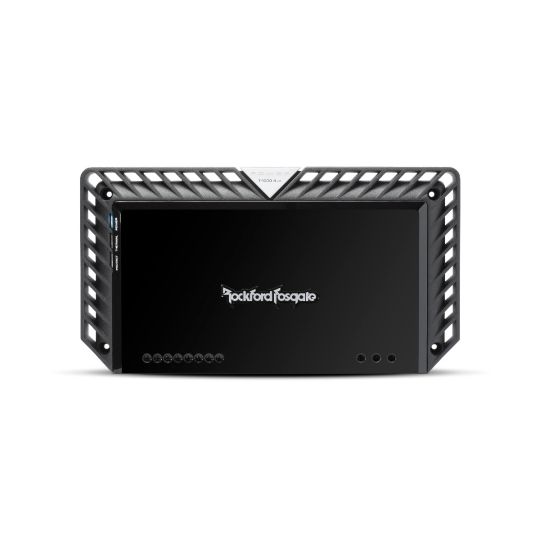

ROCKFORD FOSGATE POWER T1000-4ad 1,000 Watt Class-ad Full-Range BRIDGEABLE 4-Channel Amplifier
The Power T1000-4ad is a 4-channel amplifier that combines the sound quality characteristics of a Class-A design with the efficiency of a Class-D in one remarkable package, offering high fidelity in a full-range configuration.
DESCRIPTION:
The T1000-4ad combines sound quality characteristics of Class-A designs with efficiency of a Class-D in one remarkable package. Superior sound quality is possible through the implementation dynamic switching frequency control. The addition of Constant Power circuitry produces optimized output at a range of impedances. Rockford Fosgate created Class-bd for brute power to run low frequency subwoofers, and now Class-ad offers high fidelity in a full-range configuration.
- 2/4 channel input switch
- 24dB/octave crossover
- 4 Gauge power/ground connectors
- Audiophile grade speaker connections
- MOSFET power supply
- MOSFET output stage
- RCA pass-thru outputs
- 2-Year Warranty
SPECIFICATION:
- Number of Channels: 4
- Rated Power(RMS Continuous Power):
- 250 Watts x 4 @ 4-Ohms
- 250 Watts x 4 @ 2-Ohms
- 250 Watts x 4 @ 1-Ohm
- 500 Watts x 2 @ 4-Ohms Bridged
- 500 Watts x 2 @ 2-Ohms Bridged
- Total Power (Sum of Rated Power): 1000 Watts RMS
- Dynamic Power (PVC/PowerCube® Measurement)
- Front Channels
- 290 Watts x 2 @ 4-Ohms 0° Res
- 290 Watts x 2 @ 2-Ohms 0° Res
- 290 Watts x 2 @ 1-Ohm 0° Res
- Rear Channels
- 290 Watts x 2 @ 4-Ohms 0° Res
- 290 Watts x 2 @ 2-Ohms 0° Res
- 290 Watts x 2 @ 1-Ohm 0° Res
- Bridgeable: Yes
- Efficiency (average):
- 84.1% @ 4-Ohm Full Power
- 81.6% @ 2-Ohm Full Power
- 81.0% @ 1-Ohm Full Power
- Crossover Controls:
- Front High-Pass (HP): 50-500Hz 24dB/octave Butterworth
- Front Low-Pass (LP): 50-500Hz 24dB/octave Butterworth
- Rear High-Pass (HP): 50-500Hz 24dB/octave Butterworth
- Rear Low-Pass (LP): 50-500Hz 24dB/octave Butterworth
- Tone Controls:
- Front Channels - Punch EQ
- Treble: 0dB to +12dB @ 12kHz
- Bass: 0dB to +18dB @ 45Hz
- Rear Channels - Punch EQ
- Treble: 0dB to +12dB @ 12kHz
- Bass: 0dB to +18dB @ 45Hz
- Function depends upon crossover setting (LP/AP/HP)
- Signal Input:
- Front Low level: 1 RCA pair
- Rear Low level: 1 RCA pair
- Signal Output: 1 RCA pair
- Power Input Connector: Block
- Power Wire Gauge: 4 AWG
- Speaker Output Connector: Block
- Speaker Wire Gauge: 8 AWG to 16 AWG
- Heat Sink Type: Cast aluminum
- Cooling: Convection
- Remote Controls: Optional Remote Punch EQ
- (overrides rear channel built-in Punch EQ)
- Visual Indicators:
- Power (Blue LED)
- Thermal (Red LED)
- Protect (Yellow LED)t
- Circuit Topology Class: Class A/D
- Frequency Response: 20Hz to 20kHz +/- 1dB
- Dimensions (HxWxL):
- 2.14 x 8.14 x 14.91 (in)
- 5.42 x 20.68 x 37.86 (cm)
| SKU | T1000-4ad |
|---|
