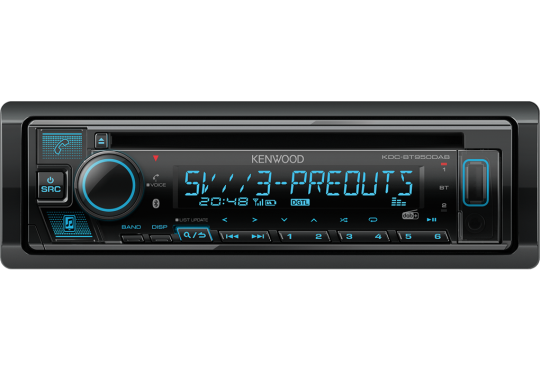

Kenwood KDC-BT950DAB CD/USB Receiver Bluetooth & Digital Radio Stereo

Details

Key Features

DAB+ Digital radio tuner built-in
Bluetooth handsfree & audio streaming built-in
Front USB 2.0 with 1,5A smartphone quick charge
Made for iPod / iPhone
MP3/WMA/AAC/WAV/FLAC playback
KENWOOD Remote & Music Mix app ready
DSP, DTA, 3-Way X'over & 13-band EQ built-in
3x RCA High Power Preouts (5,0V)
Variable Colour Illumination (Key & Display)
English/French/German/Russian & Spanish GUI language

General Features

DIN Size 1 DIN
Detachable Faceplate
Key Illumination Variable LED
Rotary Encoder & Control Knob
Dual Accent Key Handsfree & Audio Streaming
Back-up Memory Menu Settings
Touch Sensor Tone
Digital Clock (24H)
Clock display when power-off default off
All-off Select (20/40/60 minutes)
Built-in Connector Mitsumi, 16 pin
ISO connector, Mitsumi to ISO cable
Bluetooth unit built-in
Firmware upgreadable

Display Features

Display Type Liquid Crystal Display (LCD)
Display Layout 13Seg. X 13 Digit / 1,5 line
Display Illumination Variable by RGB LED
Variable Illumination
Dimmer Control Manual / Set by Timer
Brightness control 0 - 31 steps
Demo Mode
Menu text in selectable language English(default) / Spanish / French / German / Russian
TAG Language Display English / Spanish / French / German / Russian / Greek

Cosmetics features

Front/edge Black Injection
Dress plate Black Injection
Preset key finish Black Injection
Escutcheon finish Black Injection
Volume & operation knob illumination Variable
Triangle Illumination Red LED
Front terminals dust cover
Key illumination Variable by RGB LED
Illuminated front USB port Variable by RGB LED
Display illumination Variable by RGB LED
Brightness Control (Key) 0 - 31 step
Brightness Control (Display) 0 - 31 step
Dimmer Control (Key) Manual / Set by Timer
Dimmer Control (Display) Manual / Set by Timer
Variable color illumination
Color Zone Concept 2 zone colour control

Tuner Features

Station Select Manual / Preset
Tuner preset/recall key
FM Reception
AM (MW/LW) Reception
Tuner Presets (FM/AM) 24 Presets (18FM / 6AM)
Preset memory w/o back-up power
Tuning mode Auto1/Auto2/Manual
Up/Down Seek/Scan
Automatic Memory Entry (AME)
FM Stereo / Mono Selector
Radio Data System
Radio Text Plus
Traffic Information
Local search
AF Regional Selectable: AF/AF Reg/OFF
Auto TP search
Enhanced Other Networks Function (EON)
Program Type Function (PTY)

CE DAB tuner features

DAB+ tuner built-in
Digital Radio Certification Mark
Intelligent seek, (Service, Ensemble & Component)
Tuning mode / Seek mode Auto1/Auto2/Manual
Service preset 6 ch * 3 bank presets,
Service list by alphabet order
Preset list
Alphabet Search
Related service
Audio interrupt standby by PTY
Audio interrupt standby by announcement
DAB-RDS integrated TI
Traffic Information
DAB priority
PTY (Programme Type) search
PTY (Programme Type) watch
Soft linking
Antenna power supply on/off switch
DAB antenna included, SMB terminal

CE_Playable Audio file
AAC (*.m4a) files are playable USB
AAC (*.aac) files are playable CD/USB
MP3 files are playable CD/USB
WMA (.wma) files are playable CD/USB
WAV (.wav) files are playable USB
FLAC files are playable USB

CD Features

CD-R/RW Compatible
MP3 Playback with ID3 Tag Display
WMA (Windows Media Audio) Playback
MP3, WMA & AAC playback
AAC (Advanced Audio Coding) Playback
CD Text Support
D.A.C. processing 24bit
0 bit Mute
Random Function DISC Random/Random OFF
Repeat Function Track Repeat/All Repeat
Fast Forward / Reverse play
Tag Information Display

USB Features

USB terminal, Front side with slide protection cover
USB Type 2.0 Full speed
Drive Change
MP3 playback with ID3 Tag Display
WMA (Windows Media File) playback
AAC (Advanced Audio Codec) playback
WAV (Waveform Audio Format) playback
FLAC (Free Lossless Audio Codec) playback
Repeat/Scan/Random search
Repeat / Random Play
Resume play
Time code display
1,5A Smartphone Quick Charge

iPod Features

Made for iPod & iPhone *
USB Direct Control (Audio, 1 wire, Lightning-connector) with optional cable KCA-iP103
Music playback
Alphabet search
Skip search
Direct Search
Control by hand
Reverse browsing
* Always update to latest Apple firmware

Audio Features

Maximum Output Power 50W x 4
MOSFET Power IC
Auxiliary input, Front, Mini-jack
Pre-out 3 RCA (FRONT/REAR/Subwoofer)
Pre-out Output Level 5V
Subwoofer Reference Level Adj.
2-Way X'over network
3-Way x'over (bi-amp connection)
Balance/Fader/Loudness Control
Loudness Control Off / LV1/ LV2
Bass Boost Circuit Off/+1/+2/+3/+4/+5
Equalizer built-in, 13 band with 8 presets
Graphic Equalizer + Preset 13-Bands Graphic Equalizer with 8 Presets.
Digital Sound Processor (DSP) Built-in
Digital Time Aligment (DTA)
Low- & High-pass Filter
Speaker Size Control
Kenwood Sound Reconstruction
Sound Reconstruction
Space Enhancer
Realizer
Stage EQ
Drive EQ
Extra EQ
Sound Elevation

Bluetooth General Features

Hands Free Profile with High Sound Quality HFP V1.7.1
2 Phones Switchable Hands Free
2 phones fulltime connection
High Quality Audio Streaming SBC/AAC
Serial Port Profile (SPP)
Phonebook Access Profile (PBAP)
Easy pairing function
iPhone & Android automatic pairing via USB
KENWOOD Remote App Ready available in App Store & Play store
KENWOOD Music Mix Support
Private mode
Interrupt call request
Alphabet Search (Phonebook)
Voice Control
Phone device status display
Audio device status display
Signal strength display
Remaining battery display
Bluetooth Paring Indicator
High-quality noise canceling microphoneIncluded (rear wired)
Bluetooth firmware upgradeable, Included in system updates
* depends on phone model/make
& Kenwood unit Connectivity
iPod direct control, Built-in
OEM Wired Remote Control ready, Optional interface needed
DC-Cord NEW Mitsumi to ISO
Power Control (P.CON) wire
2-way (Tel/Navi) mute wire
Preout 3 x RCA (Front/rear/subwoofer)
FM Antenna Input
DAB Aerial input SMB connector
External microphone input 3,5mm mini-jack

Tuner Specifications

FM range: 87.5Mhz - 108MHz (50Khz step)
FM Usable Sensitivity 0.56μV/75ohm (S/N 30dBf)
FM Quieting Sensitivity 1.58μV/75ohm (S/N 46dBf)
FM Frequency Response 30Hz ~ 15kHz (± 3dB)
FM Signal to noise ratio (Mono) 68dB
FM Stereo Separation (1kHz) 40dB
MW range: 531kHz - 1611kHz (9kHz step)
MW Usable Sensitivity 28.5μV
LW range: 153kHz - 279kHz (9kHz step)
LW Usable Sensitivity 45μV

DAB Tuner specifications

Band III - Frequency range 174.928 MHz - 239.2MHz
Mode I, II, III, IV
Sensitivity 100dBm
Signal to noise ratio 90dB
DAB Aerial Connector Type SMB
Output Voltage 12V (11V to 16V allowable)
Maximum Current < 100 mA

CD Specifications

Laser Diode GaAIAs
Digital Filter(D/A) 8 Times Over Sampling
Digital/Analogue Converter 24 Bit
Wow & Flutter Below Measurable Limit
Frequency Response 20Hz ~ 20kHz (±1dB)
Total Harmonic Distortion 0.01% (1kHz)
Signal to Noise Ratio 96dB (1kHz)
Dynamic Range 92dB
Channel Separation 90dB
MP3 Decoder Compliant with MPEG-1/2 Audio Layer
WMA Decoder Compliant with Windows Media Audio
AAC Decoder AAC-LC".aac" Files

USB Specifications

USB Version compatibility USB 1.1 / 2.0 full speed
File System FAT 32 / 16 / 12
Maximum Supply current 1500mA
MP3 Decode Compliant with MPEG-1/2 Audio Layer-3
WMA Decode Compliant with Windows Media Audio
AAC Decode "m4a" & "aac" file encoded by AAC-LC format
WAV Decode Linear - PCM Files
flac Decode FLAC files up to 96kHz/24bit
Frequency Response 20Hz - 20kHz
S/N Ratio 99 dB (1kHz)
Dynamic Range 93dB
Channel Separation 90dB

Audio Specifications

Maximum Power 50W x 4
Output Power (DIN45324,+B=14.4v) 22W x 4
Preout Level 5000mV / 10kOhm,
Preout Impedance ≤ 600Ohm
Speaker Impedance 4Ohm ~ 8Ohm
AUX Frequency Response 20Hz ~ 20kHz (±1dB)
AUX Maximum Input Voltage 1000mV
AUX Input Impedance 30kOhm
Graphical Equalizer 13-Band
G. EQ. Frequency (Hz) 62,5/100/160/250/400/630/1k/1k6/2k5/4k/6k3/10k/16k
G. EQ. Gain (dB) -7 / ... / +7
Subwoofer Level (dB) -50 dB to +10dB

Bluetooth specifications

Technology Bluetooth V4.2
Frequency 2.402 - 2.48 GHz
Output power +4dBm(max), power class 2
Maximum range Line of sight approx. 10 meter
Handsfree profile (HFP), V1.7.1
Serial port profile (SPP)
Advanced audio distribution profile (A2DP)
Audio Codec SBC/AAC
Audio/Video remote control profile (AVRCP) Yes, V1.6.1
Phonebook access profile (PBAP)

Accessories

Release keys 2 pieces
Escutcheon
Installation Sleeve
DC cord (Mitsumi to ISO) 20 cm
DAB antennawith 3 m cable
Handsfree Microphone with 3 m cable
Multi-Language Instruction Manual Included Quick-Guide
Manuals Downloadable

General Specifications

Operating voltage 14.4V (10.5 ~ 16V Allowable)
Maximum Current Consumption 10A
Dimensions (WxHxD) 182 x 53 x 155.5mm
Weight 1200 gr.

More Information

More Information
SKU	KDC-BT950DAB

Delivery

HOW WILL YOU SEND MY ITEM?

We ship most orders within the UK using Royal Mail and DPD couriers. Due to the nature of some items we may ship your order direct from our supplier or use a different delivery partner to ensure your items get to you in the quickest and safest way.

HOW MUCH DOES DELIVERY COST?

To see how much delivery costs for your order, simply add your items to the cart and go through the first step in the checkout where you will see a delivery estimate. If you think you are not being charged the right amout please contact us for the most accurate quote.

HOW LONG DOES DELIVERY TAKE?

Depending on the delivery service you choose, delivery usually takes between 1-5 working days to mainland UK from the moment we despatch your order. Orders to UK Non-mainland and international destinations can take longer.

WHEN WILL YOU DESPATCH MY ORDER?

Orders placed before 2pm are processed and despatched the same day (excluding public holidays and weekends). Orders placed after 2pm and on weekends will be processed and despatched the following working day.

*Please note that some orders may require extra checks before we are able to despatch your order so timescales may vary.

CAN I TRACK MY ORDER?

Yes - Order tracking is offered as standard on all orders, whether they are shipped via DPD or Royal Mail. You will receive your tracking information via email once we have despatched your order.

UK NON-MAINLAND AND INTERNATIONAL DESTINATIONS.

Shipping for all items to UK Non-Mainland and International destinations will incur a charge at checkout. If the appropriate delivery charge is not applied automatically at checkout, we will contact you to arrange payment and reserve the right to cancel your order if you refuse to pay for appropriate delivery. Please feel free to contact us if you would like to query the prices to your destination.

Shipping to international destinations may require further security checks and I.D. may need to be provided by the cardholder.

Please note that we are unable to ship some items outside the UK. To avoid any disapointment please contact us before making you order.

WHAT DO YOU CLASS AS UK NON-MAINLAND?

Rep. Ireland, N. Ireland, Channel Islands, Jersey, Guernsey, Isle of Wight, Isle of Man and Scottish Highlands. If you are unsure whether your address is classed as UK Non-mainland please feel free to contact us and an advisor will be happy to help.

For any further enquiries with regards to your delivery please contact us on 020 8561 9485 and one of our adviser's will be happy to help.

Returns

Test

If you're not happy with your item or you've changed your mind.

Even though we're sure you'll be happy with your purchase, it's important that you are aware of how we deal with returns in the event that you need to send something back.

We understand how inconvenient it can be when you buy a product and aren't 100% satisfied with it. For this reason we have designed our returns policy to prevent any further inconvenience to you in these instances.

Christmas Returns Policy

Any product purchased between 24/11/23 and 24/12/23 will qualify for our extended returns policy.
If your purchase is made within this time you have until 01/01/2024 to inform us of your intention to return your items.
All orders placed within this time which are outside of the standard 14 day policy can only be returned for a credit. All credits need to be used within 90 days of issue.
Please ensure you inform our Customer Service team in writing or via email (sales@thetuningstore.co.uk).
Any items being returned need be in brand new, unopened and unused condition.
All products must be returned to us within 14 calendar days after our Customer Service team have authorised a return.
Any promotional items received FREE at the time of purchase must also be returned, unused and unopened, otherwise the value of the promotional item will be deducted from the credit.

Under 14 days

You can return your goods for a full refund or exchange as long as you inform us of your intention to return the goods within 14 days of receipt, starting from the day after you receive your goods (Exclusions apply, see below.)
All return costs are down to the buyer and it is recommended that you return your items using a trackable method with appropriate insurance (if required).
Once we have approved your return, please ensure that you return the item within 14 days.
If a returns number is provided then please ensure that the parcel has this clearly marked.
Items need to be returned in "as new" condition in their original packaging. We don't mind if you open the product to check it, however any used or damaged products will be subject to a 25% handling fee so please take care when opening your items

After 14 days

We will not offer a refund after 14 days of you receiving your delivery unless your product is faulty.

Exclusions from our returns policy

As we're sure you'll understand, there are some products that we can't offer returns on due to their nature. These include:

Special order items (these items will be clearly identifiable).
Custom cut items.
Clothing due to health and hygiene reasons.
Products that include software which require activation.

Please note that these exclusions do not apply to items that become faulty.

If your product becomes faulty

We endeavour to get your items to you in fully working order, however in the event that your items do become faulty, please read below on what you should do next.

In a lot of cases with some products, faults can be fixed by performing some basic troubleshooting, so to prevent any further inconvenience to you we advise that you contact our Customer Service team who can guide you through some basic troubleshooting before sending items back.

Under 30 days

If your items become faulty within 30 days of delivery you are entitled to a full refund or exchange. Please contact our customer service centre who will provide necessary returns details.
Please send the items back with a cover note including a description of the fault and your original order number.
Once we have fully tested the item and confirmed the fault, we will process the refund or exchange including cost of carriage back to us (within reason).
If during our testing we cannot find a fault, no refund will be given and you will be charged for delivery of the item back to you.

After 30 days

After 30 days you will still be able to get your faulty items repaired or replaced within the manufacturers warranty and we will be happy to assist you with this. Please contact our customer service team to find out the best way to get your items repaired or replaced. Please be aware that after 30 days we will not cover you for any carriage costs.

Air Lift Warranty information

Click here for Air Lift warranty information.

PLEASE NOTE: ALL RETURNS NEED TO BE ACCOMPANIED BY A COMPLETED RETURNS FORM: DOWNLOAD.
DONT HAVE A PRINTER? Just ensure you include the relevant information required on a note inside the return so that we can process your request.
