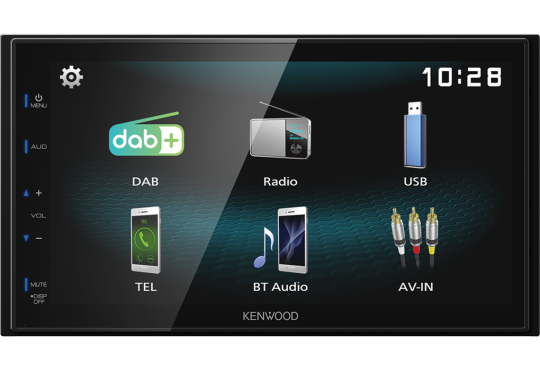

Kenwood DMX125DAB 6.8” WVGA Digital Media AV Receiver with DAB Radio Built-in
Key Features
- Clear resistive 6.8" WVGA touch screen
- Android USB mirorring ready
- DSP / DTA /13 band equalizer
- DAB+ tuner built in
- 3 preouts, (2.0V) (Front/Rear/Sub(mono))
- AV-in, Video-out & RCAM-in
- Bluetooth handsfree & audiostreaming built-in
- Rear USB, 1A Charge
- MP3, WMA, AAC, WAV & FLAC audio file playback
- MPEG1/2 & MPEG4, H.264, WMV & MKV video file playback
- Shortbody, only 75mm installation depth
General Features
- DIN Size 2 DIN
- Smooth GUI
- Key Illumination Blue LED
- Touch sensor
- Touch Sensor Tone
- Optional IR remote controller, KNA-RCDV331
- Digital Clock (24H)
- ISO connector
- Bluetooth unit built-in
- DAB Tuner Built-in
- USB 1 wire Mirroring for Android
Monitor Features
- Screen Type 6.8" Wide VGA
- High Resolution VGA Display
- LCD type 6,8 inch Wide VGA
- LCD backlight LED
- Display Mode
- 1 Mode: Full
- Screen adjust: Brightness
- Screen adjust: Colour
- Screen adjust: Contrast
- Touch Panel
- Clear resistive
- Display Type Glare
- NTSC/PAL judge (Auto)
- Display Off Mode
Multimedia GUI Features
- OSDC Type Graphic
- Demonstration Mode
- Opening Screen Type standard
- R-CAM interrupt
- R-CAM Caution On Screen Display
- Menu text in selectable language
English(Default), Espagñol, Français, Deutch, Italiano, Nederlands, Finnish, Russian, Português, Polski, Cestina, Magyar.
Tuner Features
- Station Select
- Auto / Manual
- FM Reception
- AM Reception, (MW Reception)
- Tuner Presets (FM/AM) 30 Presets (18FM / 12AM)
- Up/Down Seek/Scan
- Automatic Memory Entry (AME)
- Radio Data System
- Traffic Information
- Local search
- Auto TP search
- Enhanced Other Networks Function (EON)
- Program Type Function (PTY)
CE DAB tuner features
- DAB+ tuner built-in
- Intelligent seek
- Tuning mode / Seek mode Auto1/Auto2/Manual
- Service preset 15 ch * 1 bank presets,
- Alphabet Search
- Traffic Information
- DAB-DAB/DAB-FM auto switch
- Time Shift
- DLS (Dynamic Label)
- PTY (Programme Type) search
- PTY (Programme Type) watch
- Announcement Switching (ASW) Select
- Soft linking
Bluetooth General Features
- Hands Free Profile (HPF) V1.6
- Advanced Audio Distribution Profile (A2DP), (SBC)
- Phonebook Access Profile (PBAP)
- Voice Control
- Noise Canceller
- Echo Canceller
- High-quality noise canceling microphone included
- CE_Playable Audio file
- AAC (*.m4a) files are playable USB
- AAC (*.aac) files are playable USB
- MP3 files are playable USB
- WMA (.wma) files are playable USB
- WAV (.wav) files are playable USB
- FLAC files are playable USB
- CE_Playable Video file
- MPEG1/2 files are playable USB
- MPEG4 files are playable USB
- WMV files are playable USB
- H.264 files are playable USB
- mkv files are playable USB
USB Features
- Rear USB Terminal
- USB Type 2.0 Full speed
- MP3 playback with ID3 Tag Display
- WMA (Windows Media File) playback
- AAC (Advanced Audio Codec) playback
- MPEG1 Video decoder
- MPEG2 Video Decoder
- MPEG4 Video Decoder
- Repeat/Scan/Random search
- Repeat / Random Play
- 1A Charge Capability for Smartphone.
Audio features
- Max. Output Power 4 x 50W
- Max. Output Power (MOSFET Power IC) 4 x 21W
- Pre-out 3RCA: Front/Rear/Subwoofer
- Pre-out Output Level 2V
- Subwoofer Reference Level Adj.
- Balance/Fader Control
- Beep On/Off
Multimedia DSP Features
- DSP Chip AK7601
- Position Control
- Position Preset 4 Presets
- Graphic Equalizer 13 bands
- G-EQ manual setting
- Time Alignment
- 0cm ~ 610cm
- High Pass Filter (HPF) Yes (Front/Rear/Center)
- HPF Cut Off Frequency 14
- HPF Cut Slope Level 4 steps
- Low Pass Filter (LPF) (Non-Fading)
- LPF Cut Off Frequency 14
- LPF Cut Slope Level 4 steps
- Cross-over
- Source DSP Memory
- Speaker Size Control
- Channel Level Control
- Loudness
- Tweeter volume
- Bass Boost
Video Features
- Audio Video Output
- Audio/Video Input
- Video-In for Rear-view Camera
- 1 dedicated video input (RCA)
Connectivity
- USB interface
- OEM Wired Remote Control ready
- Parking sensor (handbrake) wire
- 2-way (Tel/Navi) mute wire
- AV-Input (Non Switchable) (RCA)
- AV Output Video only (RCA)
- Reverse sensor wire
- Rear View Camera Input
Tuner Specifications
- FM Antenna Input
- DAB Aerial input SMB connector
- External microphone input
Tuner Specifications
- FM range: 87.5Mhz - 108MHz (50Khz step)
- FM Usable Sensitivity 12.2μV/75ohm (S/N 26dBf)
- FM Quieting Sensitivity 19.2μV/75ohm (S/N 26dBf)
- FM Frequency Response 30Hz ~ 14kHz (± 3dB)
- FM Signal to noise ratio (Mono) 55dB
- FM Selectivity(DIN) over 70dB (±400kHz)
- MW range: 531kHz - 1611kHz (9kHz step)
DAB Tuner specifications
- Band III - Frequency range 174.928 MHz - 239.2MHz
- Mode I, II, III, IV
- Sensitivity - 100dBm
- Signal to noise ratio 90dB
- Audio format MPEG1 Audio Layer II, MPEG4 HE-AAC V2
- DAB Aerial Connector Type SMB
Bluetooth specifications
- Technology bluetooth V2.1+EDR
- Frequency 2.402 - 2.48 GHz
- Output power +4dBm(max), 0dBm (AVE) power class 2
- Maximum range Line of sight approx. 10 meter
- Handsfree profile (HFP), V1.6
- Advanced audio distribution profile (A2DP), V1.2
- Audio Codec SBC
- Audio/Video remote control profile (AVRCP) , V1.3
- Phonebook access profile (PBAP), V1.1.1
USB Specifications
- USB Version compatibility 2.0 Full Speed
- File System FAT 16/32
- Maximum Supply current 1000mA
- D/A Converter 24bit
- MPEG1 Decoder MPEG-1 with MPEG Audio Layer 2
- MPEG2 Decoder MPEG-2 with MPEG Audio Layer 2
- MPEG4 Decoder
- MP3 Decode Compliant with MPEG-1/2 Audio Layer-3
- WMA Decode Compliant with Windows Media Audio
- AAC Decode "m4a" & "aac" file encoded by AAC-LC format
- S/N Ratio 99 dB (1kHz)
- Dynamic Range 99dB
Audio Specifications
- Maximum Power 50W x 4
- Output Power (DIN45324,+B=14.4v) 21W x 4
- Preout Level 2000mV / 10kOhm,
- Preout Impedance ≤ 600Ohm
- Speaker Impedance 4Ohm ~ 8Ohm
- Graphical Equalizer 7-Band
- G. EQ. Frequency (Hz) 62,5Hz - 16kHz
- G. EQ. Gain (dB) -7 / ... / +7
- Low Pass Filter Frequency (Hz) 80 / 120 / 160 / Off
Video Specifications
- Color System of External Video Input NTSC/PAL
- External Video Input Level (RCA) 1 Vpp / 75 Ohm
- External Audio Max. Input Level (RCA) 1.8 V / 10 kOhm
Monitor Specifications
- Screen size (Diagonal) 6.75 Inches Wide
- Screen Size (WxH) 151.8 x 79.7mm
- Display system Transparent TN LCD Panel
- Drive system TFT Active Matrix System
- Number of Pixels 1152000pixels (800(H) x 480(V) x RGB)
- Effective pixels 99.99%
- Pixel arrangement nRGB Striped
- Back lighting LED (Light Emitting Diode)
General Specifications
- Operating voltage 14.4V (10.5 ~ 16V Allowable)
- Maximum Current Consumption 10A
- Dimensions (WxHxD) 182 x 112 x 74.5mm
- Weight 900 gr.
- Operation Temperature Range -10°C ~ 60°C
Accessories
- Release keys 2 pieces
- Escutcheon
- Installation Sleeve
- Handsfree Microphone with 3 m cable
| SKU | DMX125DAB |
|---|
