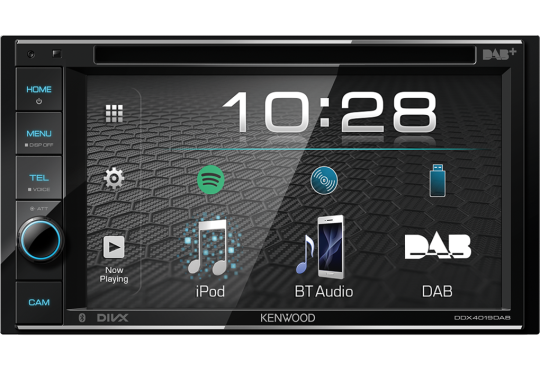

Kenwood DDX4019DAB 6.2” WVGA DVD-Receiver with Bluetooth & DAB Radio Built-in

Details

Key Features

6.2 Wide VGA LCD Touch Screen
Bluetooth Built-in for Handsfree & Audiostreaming
DAB+ Tuner Built-in for Digital Radio Reception
4 x 50W Max output Power, 3 High-voltage (4.0V) Preouts
Built-in DSP, DTA & 13-band EQ
iPod/iPhone & Android Music Playback
Kenwood Remote App & Music Mix App Ready
Spotify App Ready
MP3, WMA, AAC, WAV & FLAC Audio Playback
MPEG1, MPEG2, DivX, Video File Playback

General Features

DIN Size 2 DIN
Security Code Function ( user set) , (4 digits)
On Screen Display (OSD) Operation
Smooth GUI
Key Illumination Variable color
Rotary Encoder & Control Knob
Touch sensor
Installer Memory
Back-up Memory
Attenuator with Smooth Volume Return
Optional IR remote controller , (KNA-RCDV331)
Digital Clock (24H)
Bluetooth unit built-in
DAB Tuner Built-in
Made for iPod
Firmware upgreadable

Monitor Features

Screen Type 6,2" Resistive touch panel
High Resolution VGA Display
LCD type 6,2 inch Wide VGA
LCD backlight LED (Variable Colour)
Display Mode 4 Mode (Full(default)/Just/Auto/Normal)
Screen Adjustments Noon/Night Mem/Brightness/Tint/Colour/Contrast/Black Level/Sharpness
Dimmer function Manual/Sync
Dimmer Level Auto/On/Off
Touch Panel Clear resistive
Display Type Glare
Mechanism type Fixed
LCD viewing angle control 5 steps (0° - 20°)
NTSC/PAL judge (Auto)
Display Off Mode

Multimedia GUI Features

Variable Colour illumination
Software updates (SoC) by USB
Graphics Type Graphics
Demonstration Mode
Top Menu Customize
Background Customize preset x 9 + user set x 1
Screen Capture
R-CAM interrupt
R-CAM Caution On Screen Display
R-CAM Parking Guide Lines
Menu text in selectable languages

Tuner Features

Station Select Manual / Preset
FM Reception
AM (MW/LW) Reception
Tuner Presets (FM/AM) 20 Presets (15FM / 5AM)
Up/Down Seek/Scan
Automatic Memory Entry (AME)
FM Stereo / Mono Selector
Radio Data System
Radio Text Plus
Traffic Information
Local search
AF Regional Selectable: AF/AF Reg/OFF
Enhanced Other Networks Function (EON)
Program Type Function (PTY)
PTY News Off/0/10/20/.../80/90min

CE DAB Tuner Features

DAB+ tuner built-in
Digital Radio Certification Mark
Intelligent seek
Tuning mode / Seek mode Auto1/Auto2/Manual
Service preset 5 ch * 3 bank presets,
Preset list
Alphabet Search
Traffic Information
DAB-DAB/DAB-FM auto switch
Seamless DAB-FM blending
DLS (Dynamic Label)
PTY (Programme Type) search
PTY (Programme Type) watch
EPG (Electronic Program Guide)
DMB Audio (Digital multimedia broadcasting)
Soft linking
Antenna power supply on/off switch

Bluetooth General Features

Hands Free Profile (HPF) V1.6
Max num. of regist. phones for HFP 5 phones
2 phones fulltime connection
Advanced Audio Distribution Profile (A2DP)
High Quality Audio Streaming SBC/AAC
Serial Port Profile (SPP)
Simple Secure Pairing (SSP)
Phonebook Access Profile (PBAP)
Wireless Music Browsing (AVRCP 1.5)
Easy pairing function
iPhone automatic pairing via USB
Spotify App Link Iphone & Android
KENWOOD Remote App Ready
KENWOOD Music Mix Support
Catchphone / Call Waiting
Private mode
Noise Canceller
Echo Canceller
Phone device status display
Audio device status display
Signal strength display
Remaining battery display
High-quality noise canceling microphone included
Bluetooth firmware upgradeable

* depends on phone model/make & Kenwood unit

CE_Playable Audio File

AAC (*.m4a) files are playable CD/USB
AAC (*.aac) files are playable USB
MP3 files are playable CD/USB
WMA (.wma) files are playable CD/USB
WAV (.wav) files are playable CD/USB
FLAC files are playable USB

CE_Playable Video File

MPEG1/2 files are playable CD/USB
JPEG files are playable CD/USB
DivX CD/USB

DVD-Features

DVD Region Code 2
DVD-Video
VCD Compatible
DVD±R/RW Compatible
CD-DA
CD-R/RW Compatible
CD-DA Repeat/Scan/Random play
CD Text
Jacket Picture with Tag
Supported audio files MP3, WMA, AAC(m4a), WAV
Supported video files DivX, MPEG1, MPEG2
Supported image files JPEG
Zoom Control (DVD/VCD)
Digital/Analog Converter 24 bit
Time Code Display
Skip/Search
Direct Track Acces by Remote
Random Play Disc/Folder
Repeat Play Folder/File
List Access
Time Code Display
Direct Search
Resume Play / Last Position Memory
On screen display (OSD)

USB Features

Rear USB Terminal
USB Type 2.0 High speed
Drive Change
Kenwood Music Control App for Android
Spotify App link iPhone
Android Open Accessory support (AOA) V 2.0
Supported audio files MP3, WMA, AAC(m4a), AAC(aac), WAV, FLAC
Supported video files DivX, MPEG1, MPEG2
Supported image files JPEG
JPEG slide show
Repeat/Scan/Random search
Repeat / Random Play
Resume play
Time code display
1,5A Charge Capability for Smartphone (BC 1.2).

iPod Features

Connection via: USB / Bluetooth
Made for iPod & iPhone *
Music playback
Video playback
Album art support
Music library search
Alphabet search
Skip search
Related search
Direct Search
My playlist
iPod EQ Mode
Control by hand
App & iPod control mode
iPod Accessory Protocol (iAP) over Bluetooth
High speed search
Reverse browsing
Voice Control using Siri.
Bluetooth Auto Paring for iPhone
Battery charge + power control

* Always update to latest Apple firmware

** Apple Lightning - 30 pin adapter required

*** In case of Apple Unit with Lightning Connector only Audio playback

Audio Features

Max. Output Power (MOSFET Power IC) 4 x 50W
Pre-out 3RCA: Front/Rear/Subwoofer
Pre-out Output Level 4V
Volume Offset
Low Pass Filter (LPF)
Subwoofer Phase Control
Subwoofer Reference Level Adj.
High Pass Filter (HPF)
Balance/Fader Control
Loudness Control
Bass Boost
Att.(-20dB) with smooth Volume Return
Drive Equalizer / Drive EQ
Equalizer , 13-band
Digital Sound Processor (DSP)
Speaker Select

Multimedia DSP Features

Position Control
Position Preset ► All ► Front left ► Front right ► Front all
Position Cabin Size
Graphic Equalizer 13 bands
G-EQ KBS
G-EQ manual setting
G-EQ adjustable level , +9dB / -9dB
Time Alignment 0cm ~ 610cm
High Pass Filter (HPF) (Front/Rear/Center)
HPF Cut Off Frequency 14
HPF Cut Slope Level 4 steps
Low Pass Filter (LPF) (Non-Fading)
LPF Cut Off Frequency 14
LPF Cut Slope Level 4 steps
Cross-over
3-Way X'Over
Source DSP Memory
Speaker Size Control
Car type control
Channel Level Control
Space Enhancer
Supreme
Sound Realizer
Loudness
Stage EQ
Bass Boost
Drive EQ

Video Features

Audio Video Output , Video only (RCA)
Audio/Video Input , Mini-jack, non switchable
Video-In for Rear-view Camera 1 dedicated NTSC video input (RCA)
Detection Mode Rear View Camera Reverse sensor wire
Parking Guide Line
DVD Menu Direct Touch Operation

Connectivity

iPod Digital Connection (1 Wire)
USB interface 1 x rear, pigtail (1m)
OEM Wired Remote Control ready
Programmable OEM Steeringwheel Remote Function
DC-Cord Mitsumi to ISO
Parking sensor wire
Power Control (P.CON) wire
2-way (Tel/Navi) mute wire
Dimmer control wire
AV-Input (Non Switchable) (Mini-jack)
Video Out 1 X RCA (DVD/USB/AV-in)
Reverse sensor wire
Rear View Camera Input Dedicated RCA Video-in
Amplifier pre-out RCA: Front/Rear/Subwoofer
FM Antenna Input JASO connector
DAB Aerial input SMB connector
External microphone input 3,5mm mini-jack

Tuner Specifications

FM range: 87.5Mhz - 108MHz (50Khz step)
FM Usable Sensitivity 0.56μV/75ohm (S/N 6.2dBf)
FM Quieting Sensitivity 1.58μV/75ohm (S/N 15.2dBf)
FM Frequency Response 30Hz ~ 15kHz (± 3dB)
FM Signal to noise ratio (Mono) 68dB
FM Selectivity(DIN) over 80dB (±400kHz)
FM Stereo Separation (1kHz) 40dB
MW range: 531kHz - 1611kHz (9kHz step)
MW Usable Sensitivity 28.5μV
LW range: 153kHz - 279kHz (9kHz step)
LW Usable Sensitivity 45μV

DAB Tuner Specifications

Band III - Frequency range 174.928 MHz - 239.2MHz
Mode I, II, III, IV
Sensitivity - 100dBm
Signal to noise ratio 90dB
Audio format MPEG1 Audio Layer 1 / MPEG4 HE-AAC v2
DAB Aerial Connector Type SMB
Maximum Current < 100 mA

Bluetooth Specifications

Technology Bluetooth V3.0
Frequency 2.402 - 2.48 GHz
Output power +4dBm(max), 0dBm (AVE) power class 2
Maximum range Line of sight approx. 10 meter
Handsfree profile (HFP), V 1.6
Serial port profile (SPP), V 1.2
Service discovery protocol (SDP)
Advanced audio distribution profile (A2DP), V 1.3
Audio Codec SBC/AAC
Audio/Video remote control profile (AVRCP), V 1.5
Generic access profile (GAP)
Phonebook access profile (PBAP), V 1.2

DVD Specifications

D/A Converter 24 bit
MPEG1 Decoder MPEG-1 with MPEG Audio Layer 2
MPEG2 Decoder MPEG-2 with MPEG Audio Layer 2
DivX Decoder DivX with MP3, Dolby Digital Audio Format
JPEG Files
Audio decoder Linear PCM/Dolby Audio/MP3/WMA/WAV/AAC(.m4a)
MP3 Decoder Compliant with MPEG-1/2 Audio Layer-3
WMA Decoder Compliant with Windows Media Audio
WAV Decoder RIFF waveform Audio Format (only for LinearPCM)
AAC Decoder ".m4a" file encoded by AAC-LC format
Wow & Flutter Below Measurable Limit
Freq. Resp. (96kHz Sampling) 20Hz ~ 22kHz
Freq. Resp. (48kHz Sampling) 20Hz ~ 22kHz
Freq. Resp. (44,1kHz Sampling) 20Hz ~ 20kHz
Total Harmonic Distortion 0.01% (1kHz)
Signal to Noise Ratio 90dB (1kHz)
Dynamic Range 90dB
Disc Format DVD-Video/Video-CD/CD-DA
Sample Frequency 44.1kHz/48kHz/96kHz
Quantifying bit number 16/20/24bit

USB Specifications

USB Version compatibility USB 2.0 High Speed
File System FAT 16/32
Maximum Supply current 1500mA
D/A Converter 24bit
MPEG1 Decoder MPEG-1 with MPEG Audio Layer 2
MPEG2 Decoder MPEG-2 with MPEG Audio Layer 2
DivX Decoder
JPEG Files
MP3 Decode Compliant with MPEG-1/2 Audio Layer-3
WMA Decode
AAC Decode "m4a" & "aac" file encoded by AAC-LC format
WAV Decode Linear - PCM Files
flac Decode FLAC files up to 96kHz/24bit

Audio Specifications

Maximum Power 50W x 4
Output Power (DIN45324,+B=14.4v) 22W x 4
Preout Level 4000mV / 10kOhm,
Preout Impedance ≤ 600Ohm
Speaker Impedance 4Ohm ~ 8Ohm
Graphical Equalizer 13-Band
G. EQ. Frequency (Hz) 62,5/100/160/250/400/630/1k/1k6/2k5/4k/6k3/10k/16k
G. EQ. Gain (dB) +/- 9dB
High Pass Filter Frequency (Hz) Through/50/60>>>/180/220
Low Pass Filter Frequency (Hz) 50/60/80/100/120/Through
Subwoofer Level (dB) -50 dB to +10dB

Video Specifications

Color System of External Video Input NTSC/PAL
External video input level (mini-jack) 1 Vpp / 75 Ohm
External audio max. input level (mini-jack) 2 Vpp / 25 kOhm
Video input level (RCA) 1 Vpp, 75 Ohms
Video Output Level (RCA) 1 Vpp / 75 Ohm
Monitor Specifications
Screen size (Diagonal) 6.2 Inches Wide
Screen Size (WxH) 137.5 x 77.2mm
Display system Transparent TN LCD Panel
Drive system TFT Active Matrix System
Number of Pixels 1152000pixels (800(H) x 480(V) x RGB)
Effective pixels 99.99%
Pixel arrangement RGB Striped
Back lighting LED (Light Emitting Diode)

General Specifications

Operating voltage 14.4V (10.5 ~ 16V Allowable)
Maximum Current Consumption 10A
Dimensions (WxHxD) 178 x 100 x 162mm
Weight, inclu. sleeve & escutcheon 2 kg
Operation Temperature Range -10°C ~ 60°C

Accessories

Release keys 2 pieces
Escutcheon
Installation Sleeve
DC cord (Mitsumi to ISO) 25 cm
Handsfree Microphone with 3 m cable
Multi-Language Instruction Manual Included

More Information

More Information
SKU	DDX4019DAB

Delivery

HOW WILL YOU SEND MY ITEM?

We ship most orders within the UK using Royal Mail and DPD couriers. Due to the nature of some items we may ship your order direct from our supplier or use a different delivery partner to ensure your items get to you in the quickest and safest way.

HOW MUCH DOES DELIVERY COST?

To see how much delivery costs for your order, simply add your items to the cart and go through the first step in the checkout where you will see a delivery estimate. If you think you are not being charged the right amout please contact us for the most accurate quote.

HOW LONG DOES DELIVERY TAKE?

Depending on the delivery service you choose, delivery usually takes between 1-5 working days to mainland UK from the moment we despatch your order. Orders to UK Non-mainland and international destinations can take longer.

WHEN WILL YOU DESPATCH MY ORDER?

Orders placed before 2pm are processed and despatched the same day (excluding public holidays and weekends). Orders placed after 2pm and on weekends will be processed and despatched the following working day.

*Please note that some orders may require extra checks before we are able to despatch your order so timescales may vary.

CAN I TRACK MY ORDER?

Yes - Order tracking is offered as standard on all orders, whether they are shipped via DPD or Royal Mail. You will receive your tracking information via email once we have despatched your order.

UK NON-MAINLAND AND INTERNATIONAL DESTINATIONS.

Shipping for all items to UK Non-Mainland and International destinations will incur a charge at checkout. If the appropriate delivery charge is not applied automatically at checkout, we will contact you to arrange payment and reserve the right to cancel your order if you refuse to pay for appropriate delivery. Please feel free to contact us if you would like to query the prices to your destination.

Shipping to international destinations may require further security checks and I.D. may need to be provided by the cardholder.

Please note that we are unable to ship some items outside the UK. To avoid any disapointment please contact us before making you order.

WHAT DO YOU CLASS AS UK NON-MAINLAND?

Rep. Ireland, N. Ireland, Channel Islands, Jersey, Guernsey, Isle of Wight, Isle of Man and Scottish Highlands. If you are unsure whether your address is classed as UK Non-mainland please feel free to contact us and an advisor will be happy to help.

For any further enquiries with regards to your delivery please contact us on 020 8561 9485 and one of our adviser's will be happy to help.

Returns

Test

If you're not happy with your item or you've changed your mind.

Even though we're sure you'll be happy with your purchase, it's important that you are aware of how we deal with returns in the event that you need to send something back.

We understand how inconvenient it can be when you buy a product and aren't 100% satisfied with it. For this reason we have designed our returns policy to prevent any further inconvenience to you in these instances.

Christmas Returns Policy

Any product purchased between 24/11/23 and 24/12/23 will qualify for our extended returns policy.
If your purchase is made within this time you have until 01/01/2024 to inform us of your intention to return your items.
All orders placed within this time which are outside of the standard 14 day policy can only be returned for a credit. All credits need to be used within 90 days of issue.
Please ensure you inform our Customer Service team in writing or via email (sales@thetuningstore.co.uk).
Any items being returned need be in brand new, unopened and unused condition.
All products must be returned to us within 14 calendar days after our Customer Service team have authorised a return.
Any promotional items received FREE at the time of purchase must also be returned, unused and unopened, otherwise the value of the promotional item will be deducted from the credit.

Under 14 days

You can return your goods for a full refund or exchange as long as you inform us of your intention to return the goods within 14 days of receipt, starting from the day after you receive your goods (Exclusions apply, see below.)
All return costs are down to the buyer and it is recommended that you return your items using a trackable method with appropriate insurance (if required).
Once we have approved your return, please ensure that you return the item within 14 days.
If a returns number is provided then please ensure that the parcel has this clearly marked.
Items need to be returned in "as new" condition in their original packaging. We don't mind if you open the product to check it, however any used or damaged products will be subject to a 25% handling fee so please take care when opening your items

After 14 days

We will not offer a refund after 14 days of you receiving your delivery unless your product is faulty.

Exclusions from our returns policy

As we're sure you'll understand, there are some products that we can't offer returns on due to their nature. These include:

Special order items (these items will be clearly identifiable).
Custom cut items.
Clothing due to health and hygiene reasons.
Products that include software which require activation.

Please note that these exclusions do not apply to items that become faulty.

If your product becomes faulty

We endeavour to get your items to you in fully working order, however in the event that your items do become faulty, please read below on what you should do next.

In a lot of cases with some products, faults can be fixed by performing some basic troubleshooting, so to prevent any further inconvenience to you we advise that you contact our Customer Service team who can guide you through some basic troubleshooting before sending items back.

Under 30 days

If your items become faulty within 30 days of delivery you are entitled to a full refund or exchange. Please contact our customer service centre who will provide necessary returns details.
Please send the items back with a cover note including a description of the fault and your original order number.
Once we have fully tested the item and confirmed the fault, we will process the refund or exchange including cost of carriage back to us (within reason).
If during our testing we cannot find a fault, no refund will be given and you will be charged for delivery of the item back to you.

After 30 days

After 30 days you will still be able to get your faulty items repaired or replaced within the manufacturers warranty and we will be happy to assist you with this. Please contact our customer service team to find out the best way to get your items repaired or replaced. Please be aware that after 30 days we will not cover you for any carriage costs.

Air Lift Warranty information

Click here for Air Lift warranty information.

PLEASE NOTE: ALL RETURNS NEED TO BE ACCOMPANIED BY A COMPLETED RETURNS FORM: DOWNLOAD.
DONT HAVE A PRINTER? Just ensure you include the relevant information required on a note inside the return so that we can process your request.
